Let's integrate MirrorFly’s Meet SDK into any Web Apps

Video, Voice & Chat SDK UI Kit for React

MirrorFly UI Kit SDK is a set of pre-built UI components that allows you to easily add in-app chat with 1000+ messaging features.

Requirements

The requirements for chat SDK for React Web App are:

• React Version 16.0 or above
• Node Version v14.17.4 or above

Things to be Noted Before Making a Start

SDK License Key

Before integrating CONTUS MirrorFly Chat SDK, you need to have a SDK license key for your MirrorFly application. This SDK needs to be authenticated by the MirrorFly server using the license key for further processing.

To get the License Key,

Step 1: Register here to get a MirrorFly User account. Registration is subject to verification and would take up to 24 hours.

Step 2: Login to your Account

Step 3: Get the License key from the application Info’ section

Integrate the Chat SDK for React

Install (mirrorfly-uikit) npm package by terminal command 'npm i mirrorfly-uikit'. Now the node_modules will have a mirrorfly-uikit folder and package.json is added with the mirrorfly-uikit dependency.

Step 1: Create a new React project or Open an existing project.

Step 2: Open terminal and install mirrorfly-uikit with npm command 'npm i mirrorfly-uikit' and check package.json whether the dependency is added with mirrorfly-uikit as mentioned below.

"dependencies": {

"mirrorfly-uikit": "^4.0.32",

"react": "^16.0.0",

"react-dom": "^16.0.0",

}

Step 3: Import ChatApp component from the mirrorfly-uikit package in node modules.

Step 4: Import bundle.css from the mirrorfly-uikit package in node modules .

The apiUrl and licenseKey details can get it from the 'Overview' section in the mirrorfly Console dashboard.

import { ChatApp } from "mirrorfly-uikit/dist"

import "mirrorfly-uikit/dist/assets/scss/bundle.css"

function App() {

return (

<>

<ChatApp

licenseKey="********************"

userIdentifier="**************"

/>

</>

);

}

export default App;

Argument	Type	Description
licenseKey	String	set your licence key
userIdentifier	String	set your phoneNumber
apiUrl	String	set your base url

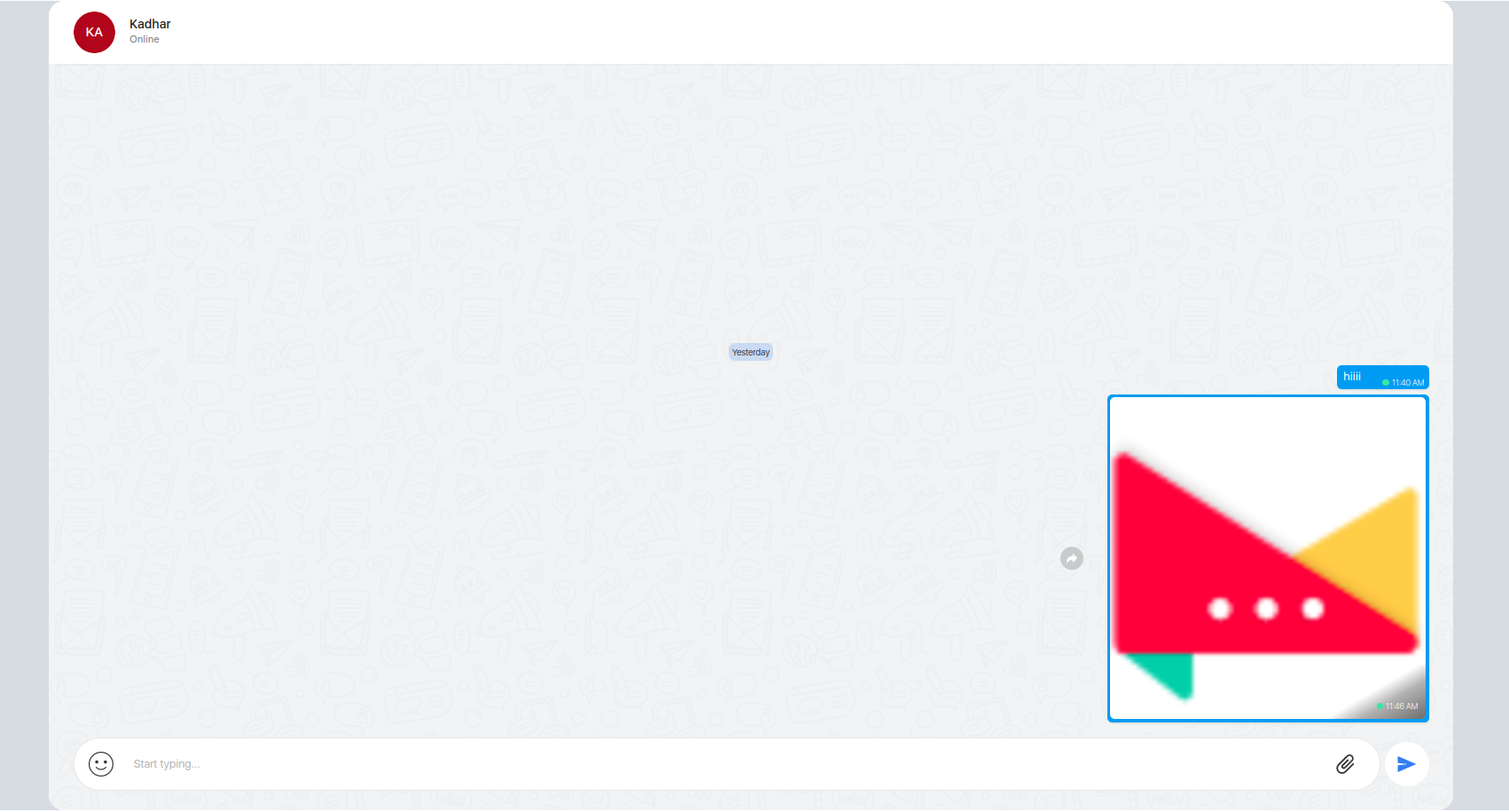

Custom Chat Conversation

If you need chat conversation page alone initialize customconversation in ChatApp component.

const customConversation = {

conversationValue : true,

userId:"xxxxxxx"

}

<ChatApp

licenseKey="********************"

userIdentifier="**************"

customConversation={customConversation}

/>

Web SDK Methods

We can also import Web SDK methods from "mirrorfly-uikit/dist" below code snippet is example to import SDK methods.

import { SDK } from "mirrorfly-uikit/dist"

const initializeSDK = async() => {

const initializeObj = {

licenseKey: "********************",

callbackListeners: {}

}

const check = await SDK.initializeSDK(initializeObj);

console.log("check", check);

}

Note :By using Web SDK methods you can use prime functionality of mirrorfly outside of Uikit.

Other Framework Integration

Note :You can also integrate the chat SDK for Angular and VueJs Framework.

Initializing the chat Conversation

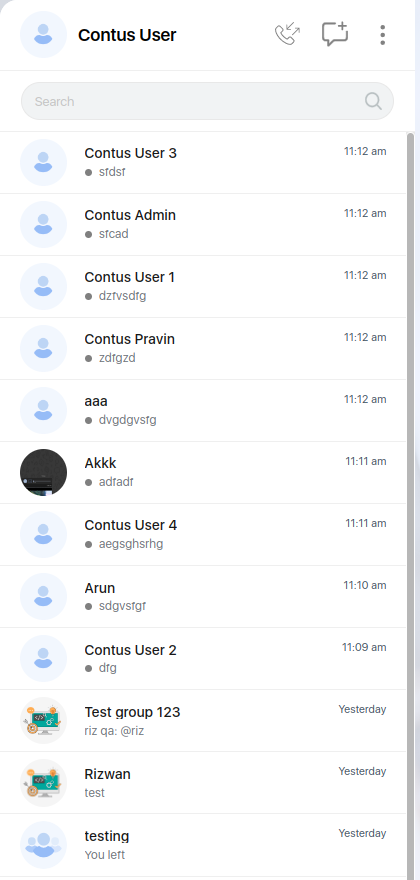

Note : Recent Search chat feature is not available for your easy plan then it will not display in Recent Chat Screen in Mirrorfly-Uikit.

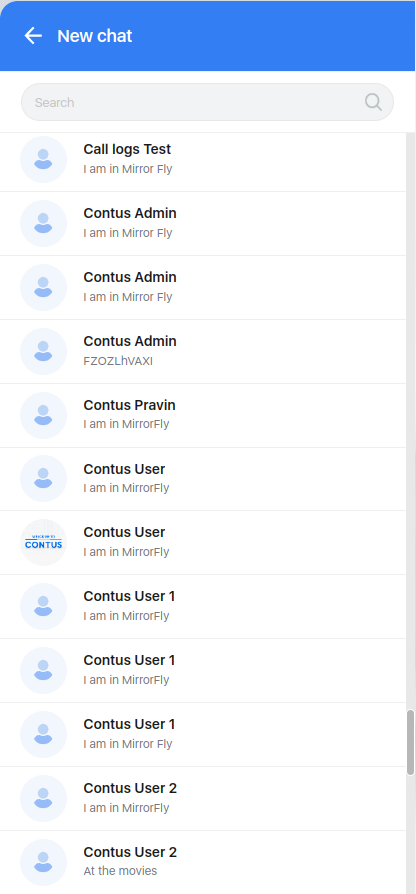

You can now run the application with single React Component. To send a message, you must first start a conversation by clicking on the add new chat icon Then, you can select the user you wish to chat from your contact list.

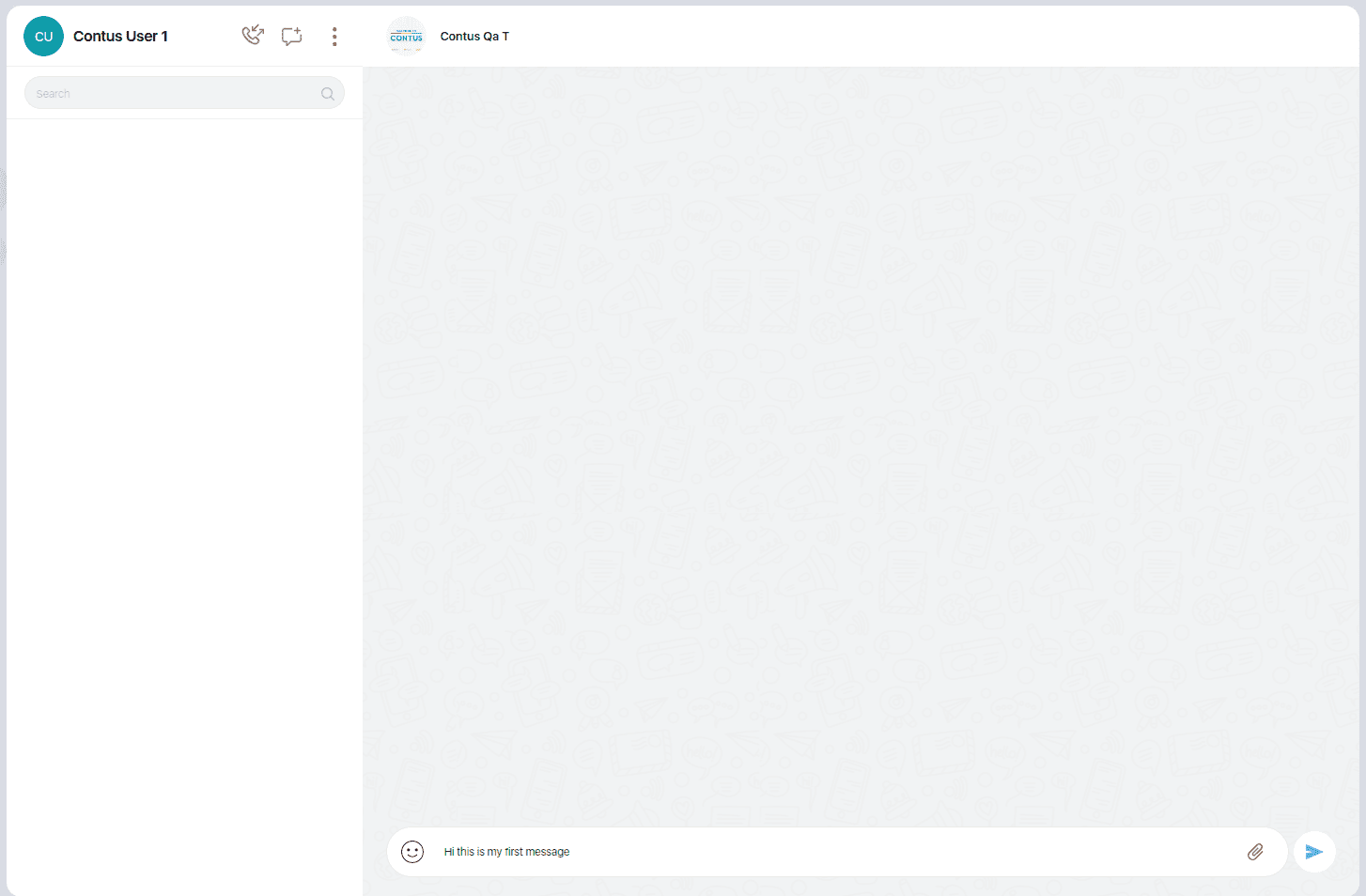

Sending Single Chat Message

Once navigated to user chat screen, type your first message and click send button .

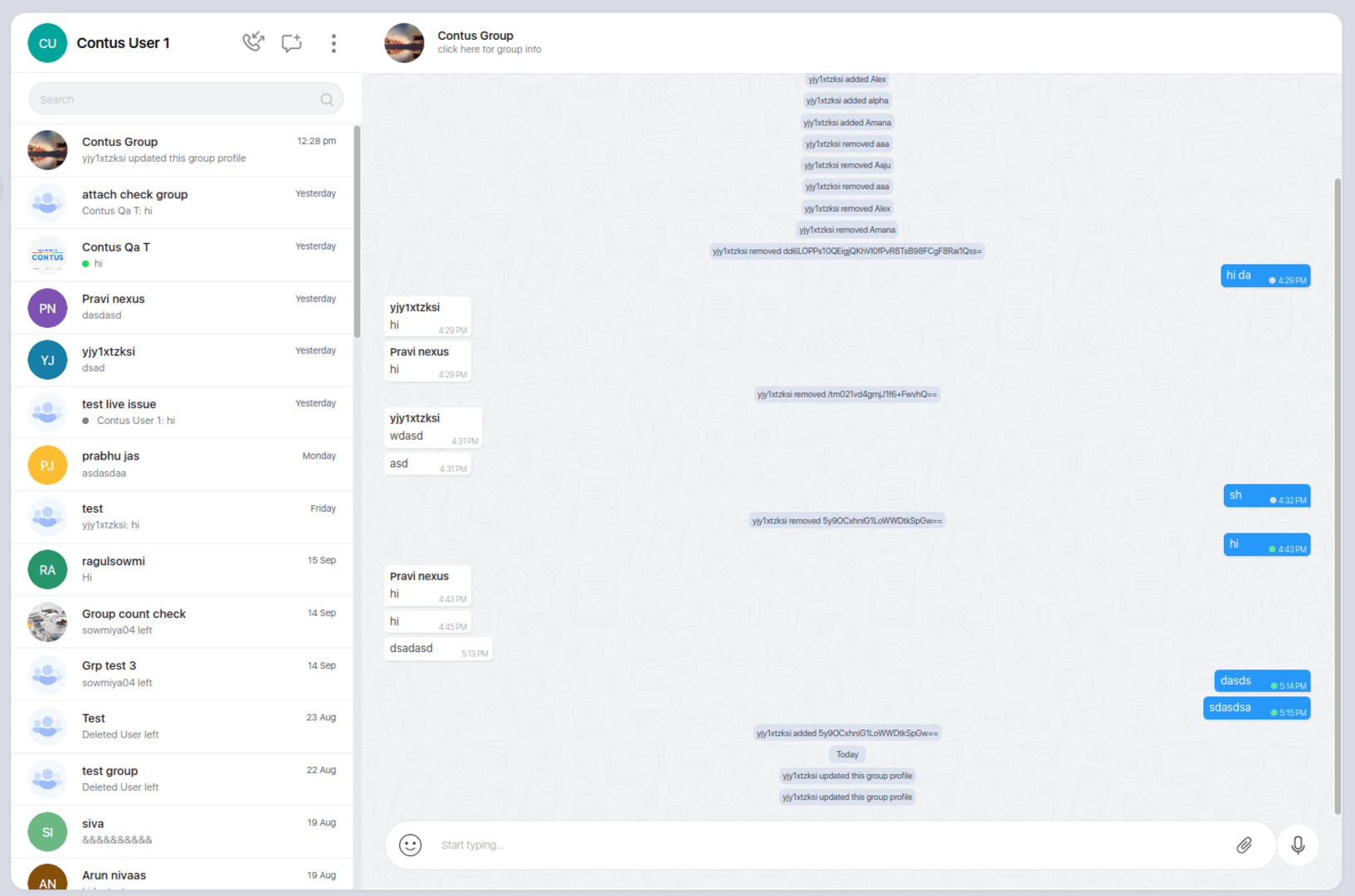

Sending Group Chat Message

Your can also connect to more than one member in group chat conversation
